Semi-automated vial filling, sealing, capping and printing system

A semi-automated vial processing system for increasing production rates of immunodiagnostic test kits.
Labman custom system: Semi-automated vial filling, sealing, capping and printing system

Key features

CompatibilityCompatible with 4 vial types
CustomisableFully customisable dispense, sealing, capping and printing parameters
High ThroughputAverage throughput of 800 vials/hour
DispensingDispense tolerance of +/- 2% on volumes between 2 and 50ml
Easy CalibrationAutomatic dispense calibration

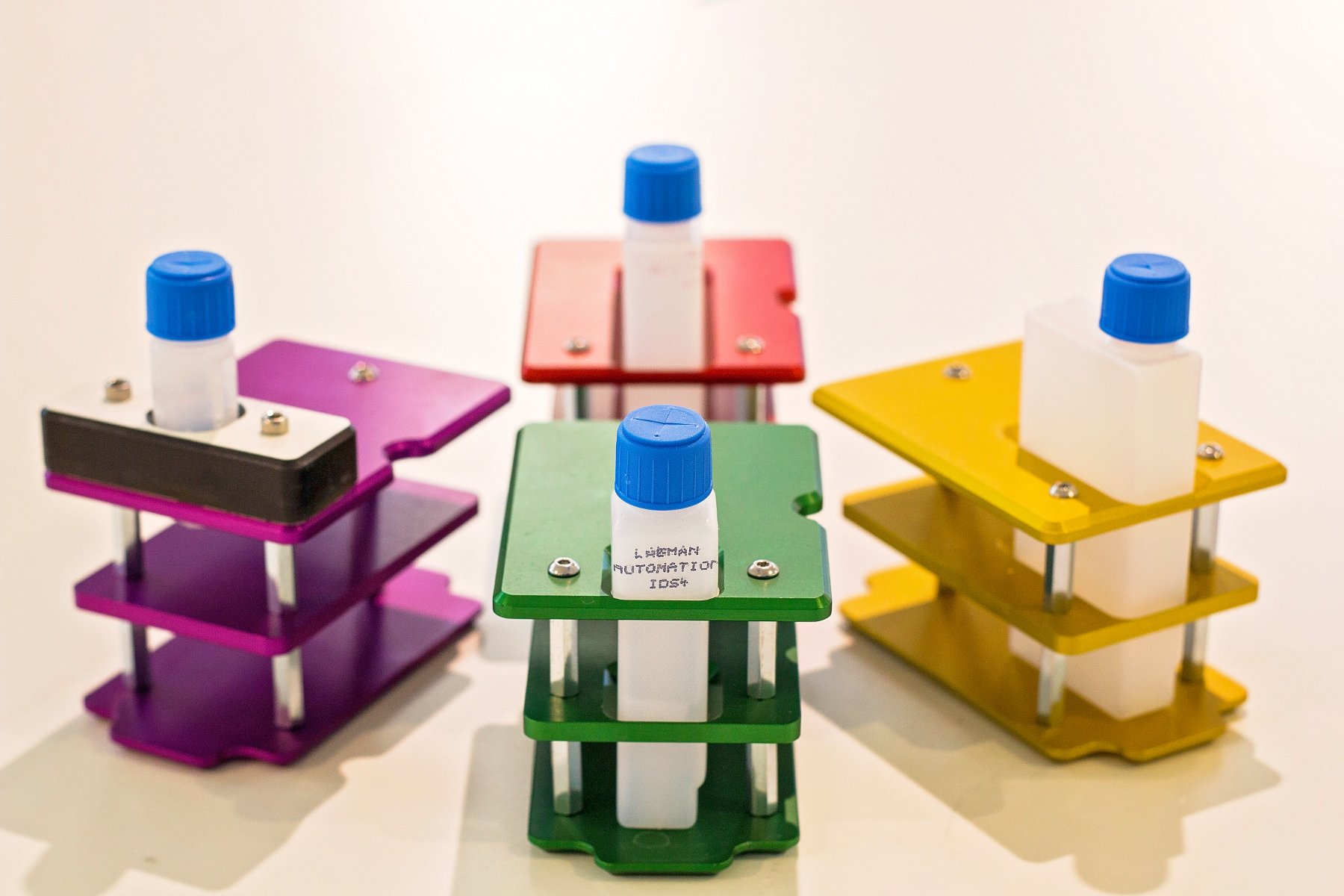

Use Custom HardwareRapid change over of custom hardware for different vial types


System Overview.

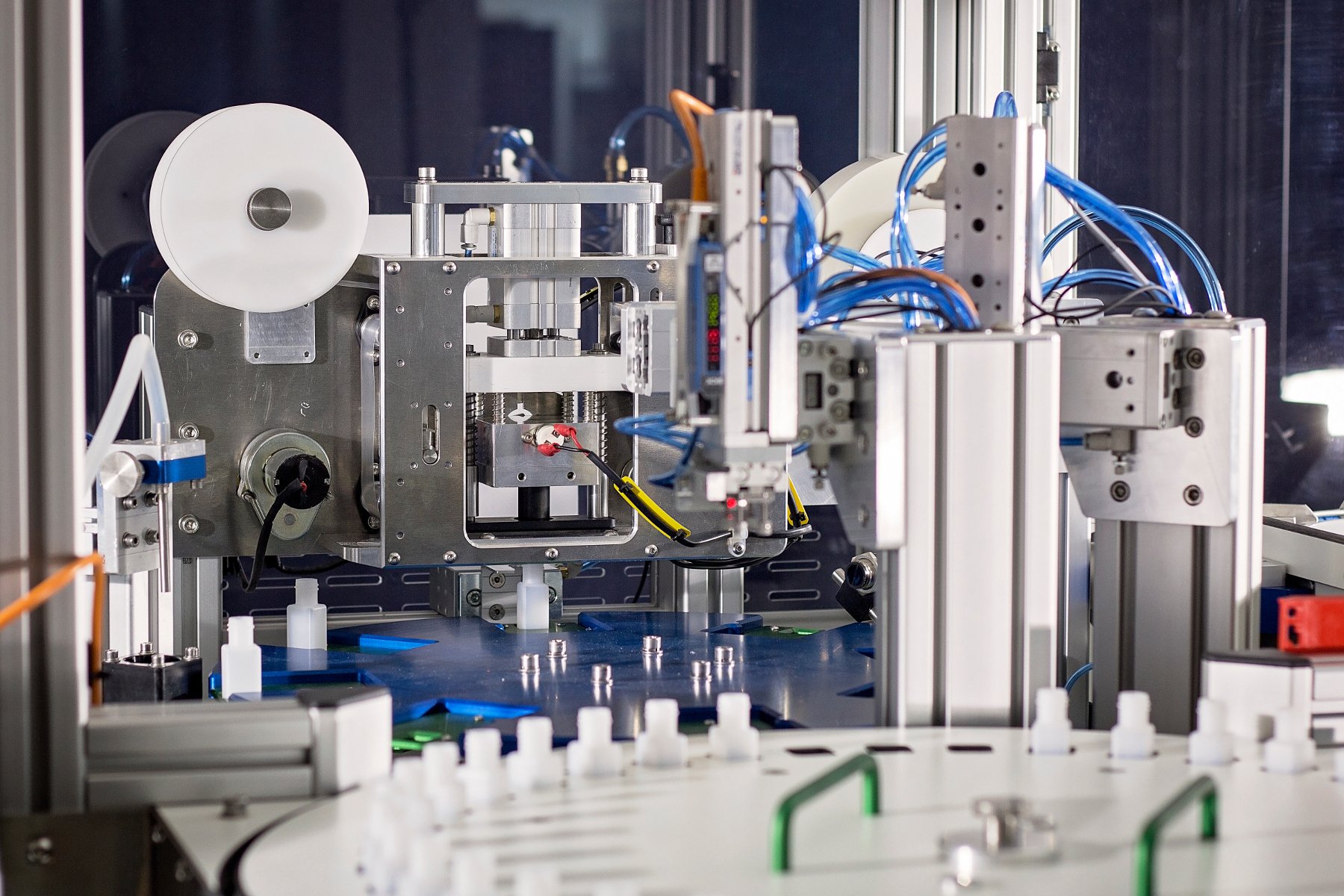

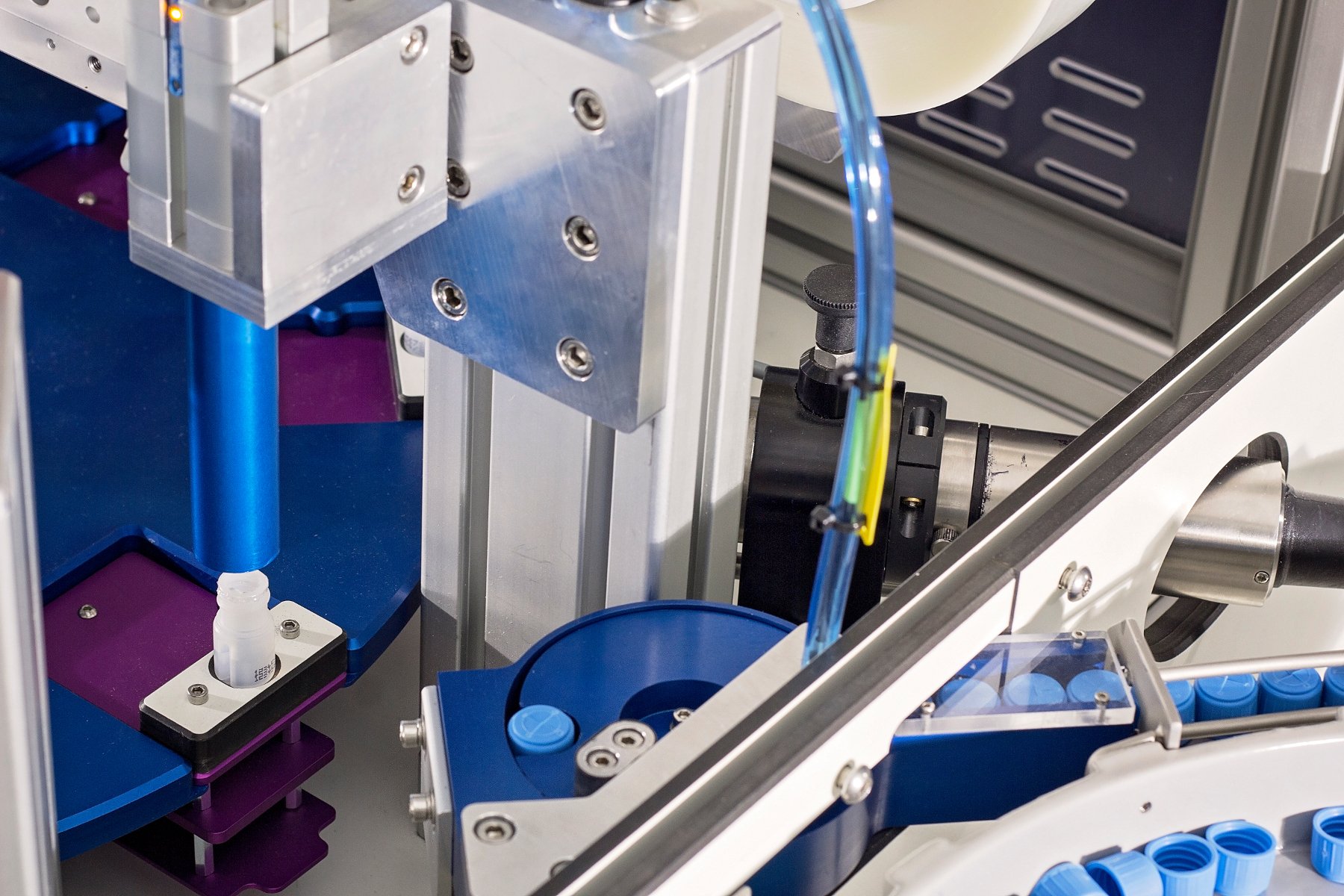

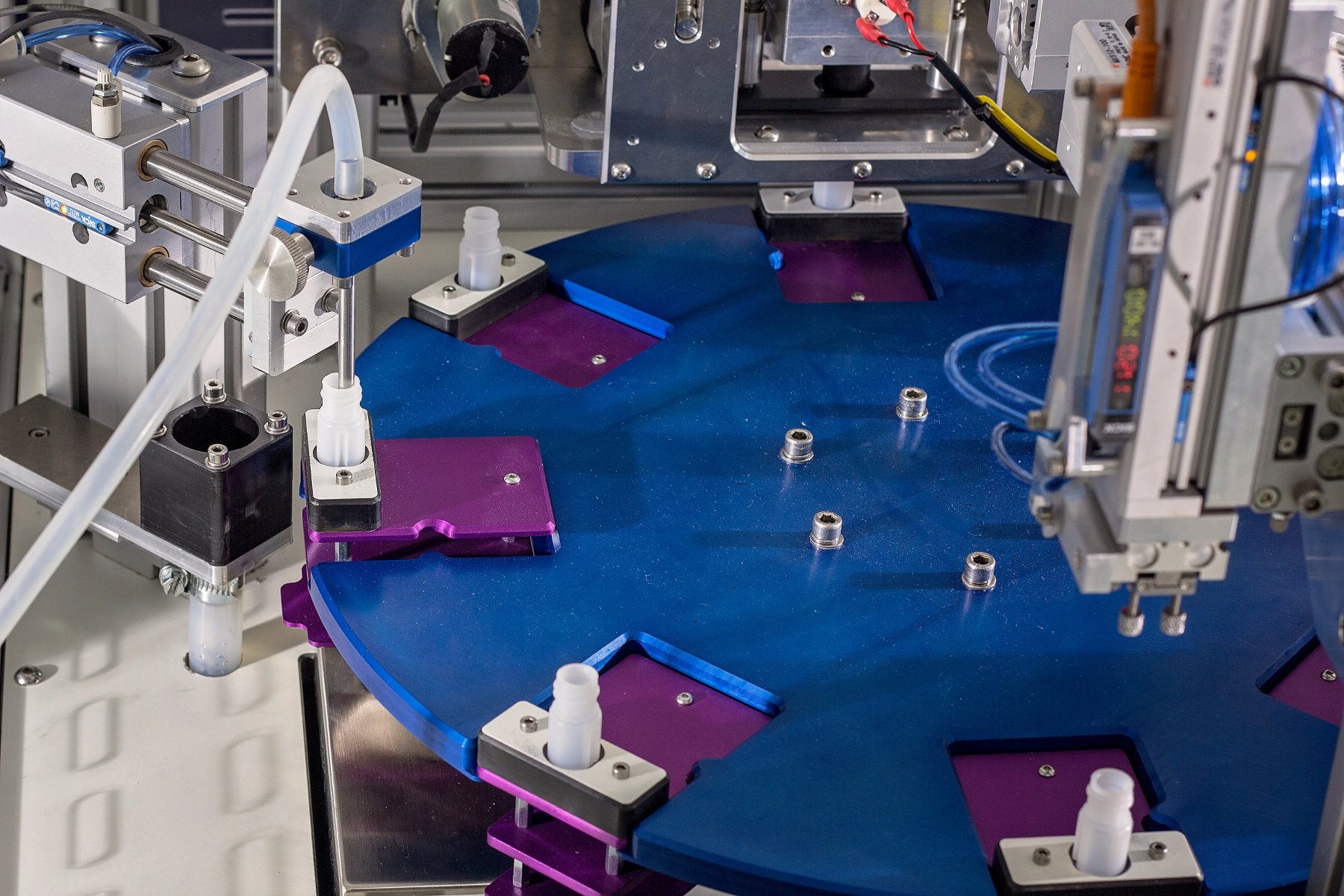

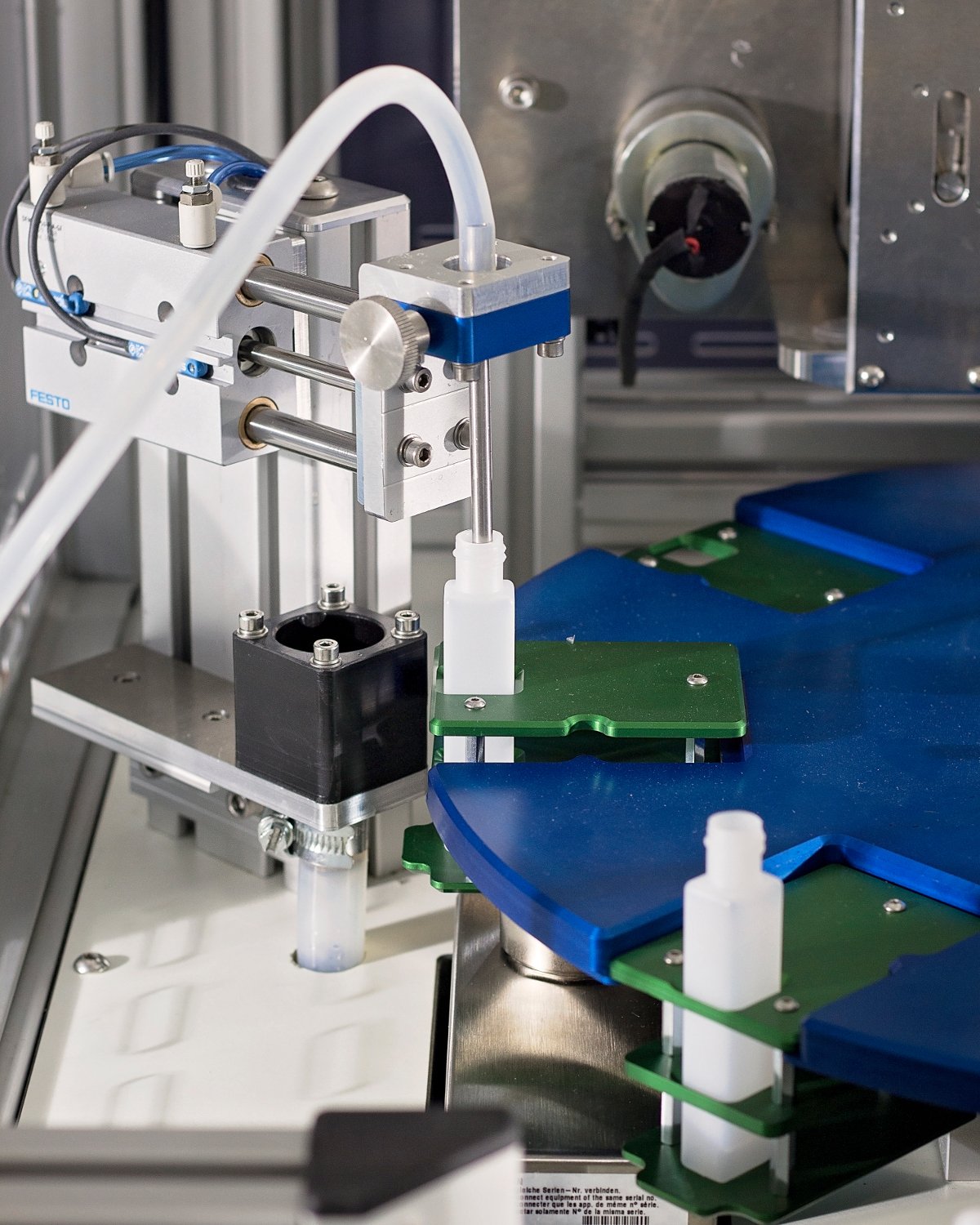

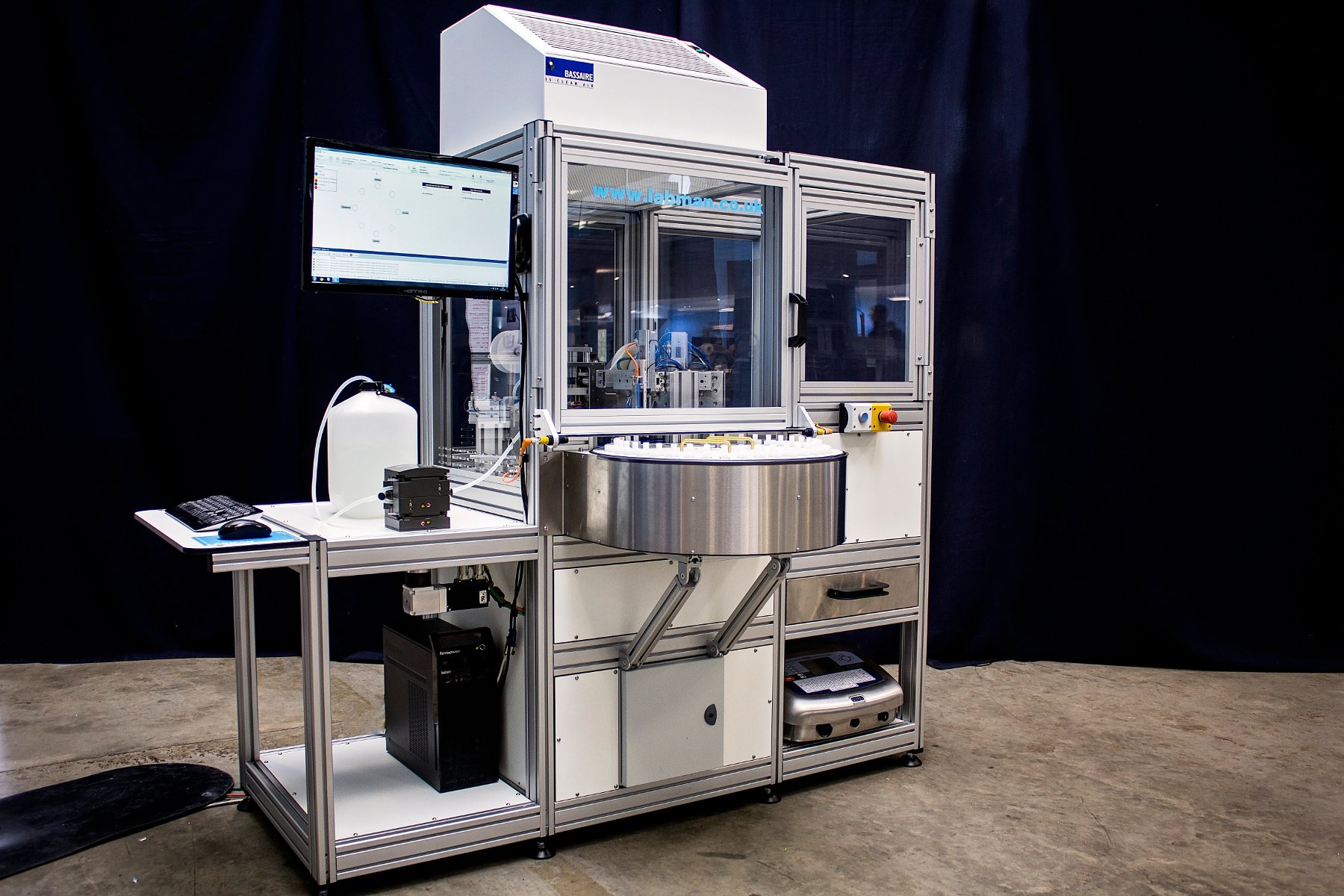

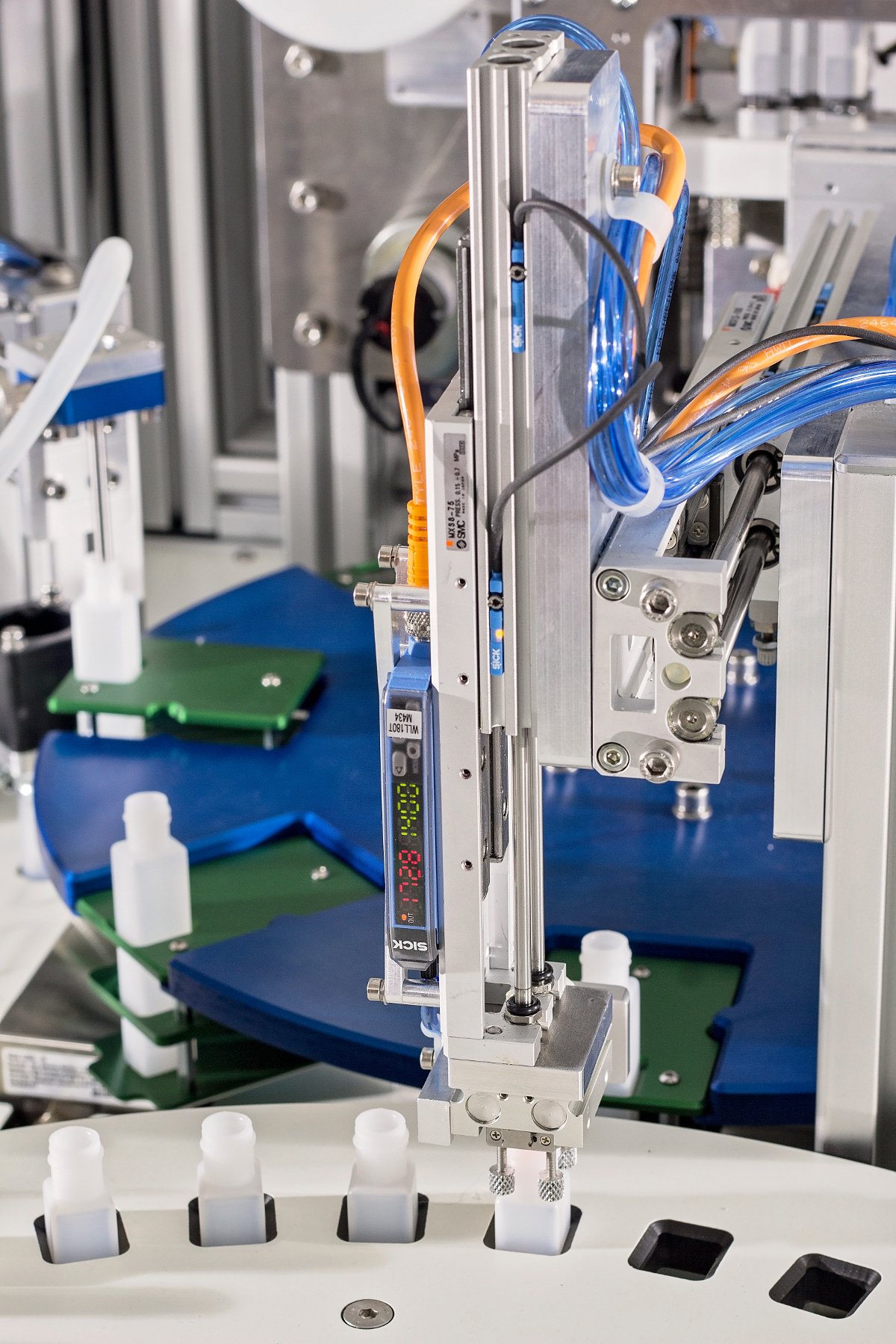

In early 2015 Labman installed and commissioned a semi-automated vial processing system into a UK diagnostics laboratory for increasing production rates of immunodiagnostic test kits. The system is designed to handle four different vial types with fully customisable dispensing, sealing, capping and printing parameters which enables a high degree of process flexibility. It is operated by a single user who is responsible for loading empty vials and removing the processed vials. The system dispenses product to a +/- 2% (by volume) tolerance in the range of 2ml to 50ml with an average throughput of 800 vials per hour. Vials are check weighed at a user specified interval before being heat sealed, capped and then printed with manufacturer’s data. The system features automatic dispense calibration to maintain the dispense tolerance throughout the process run, minimising system downtime or the need for offline calibration checks.
