Battery Coating System

Prepares and coats new battery formulations onto metal foils with the goal to help CPI improve their battery R&D

Start your project Discover custom projects

Key features

Mobile robot integrationIntegrates with an ER Flex mobile robot platform

DAC mixingMixes pots in a dual axis centrifuge

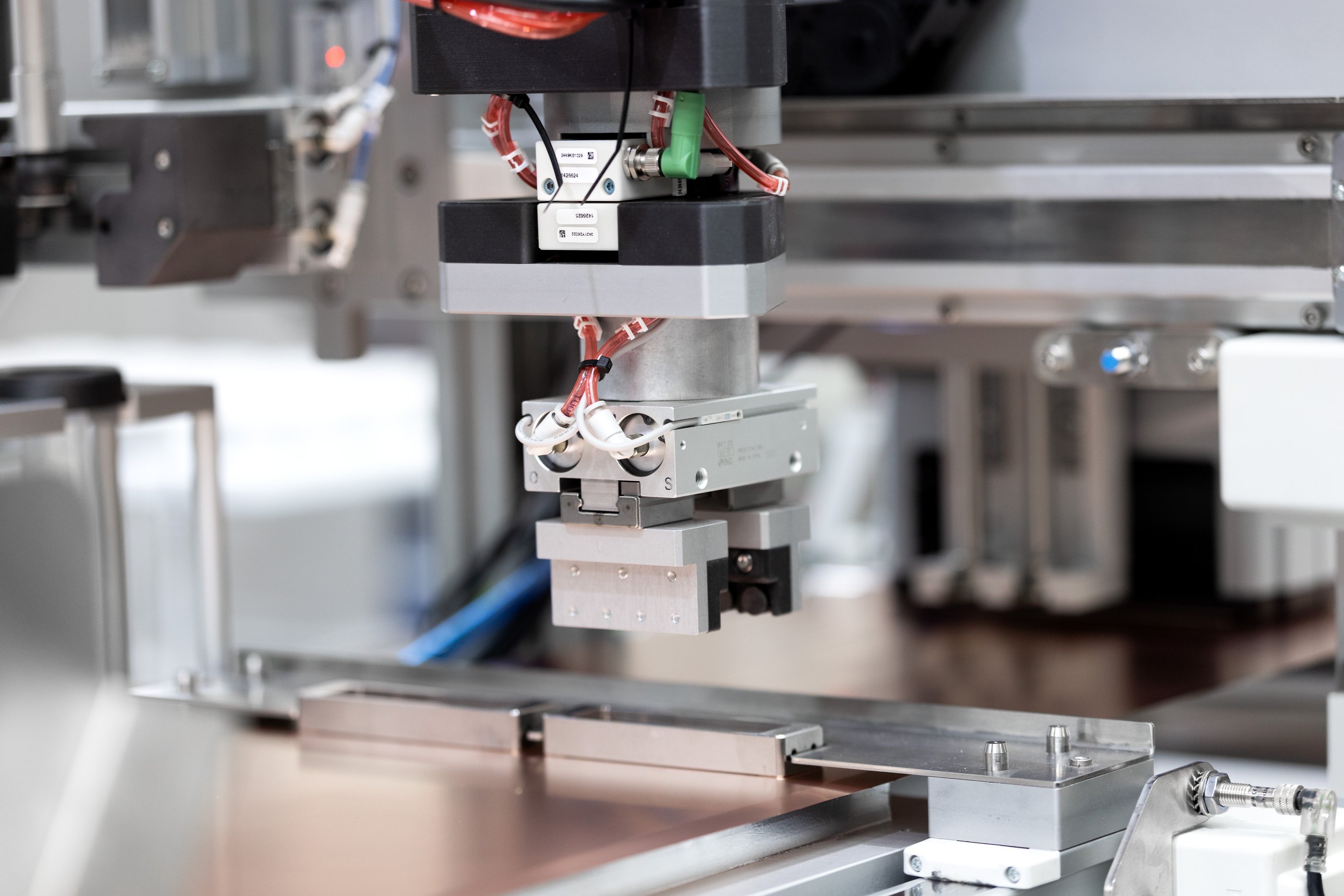

Foil coatingDrawdown bars are used to coat slurries on to thin copper or aluminium foils

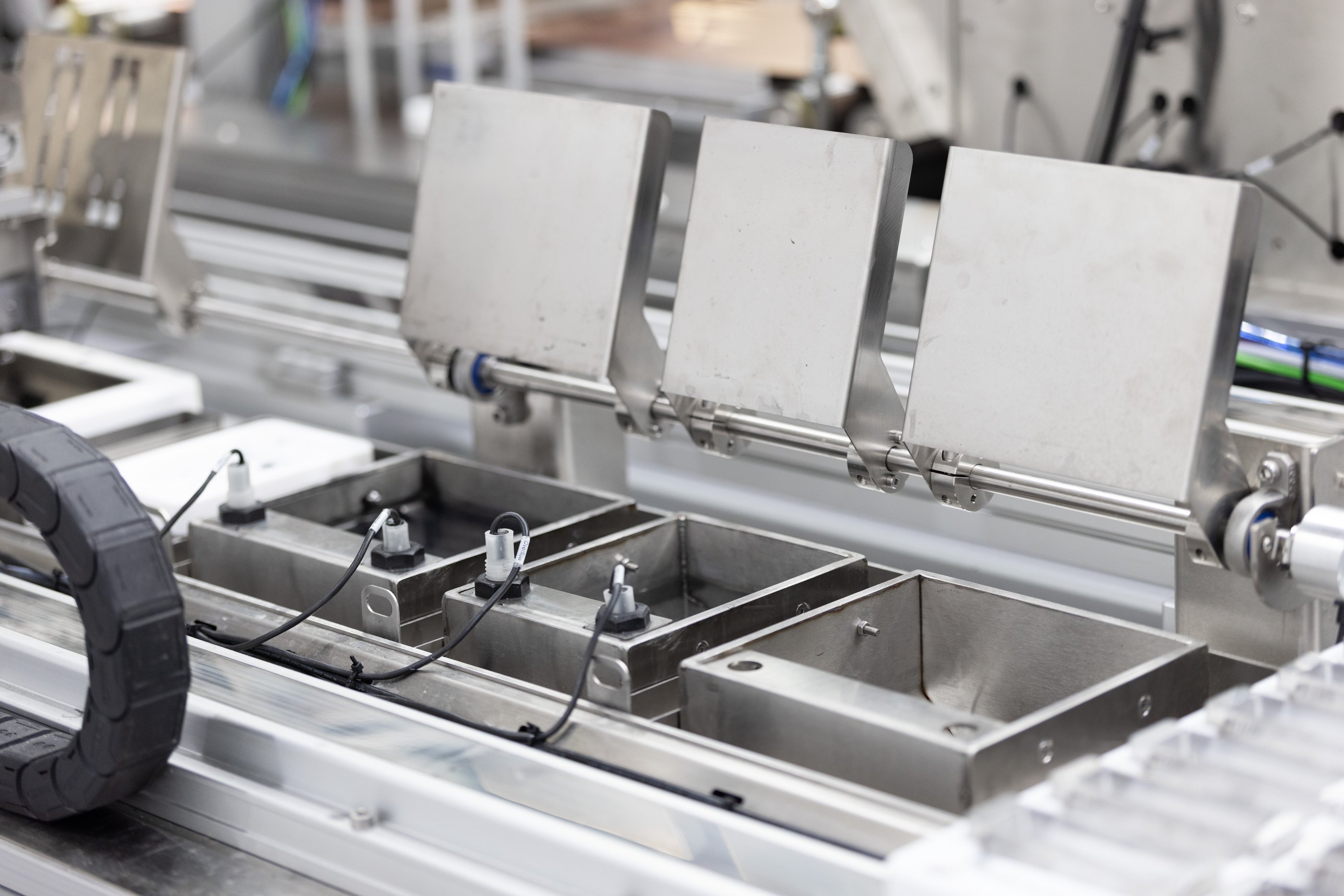

Oven dryingWet coating is dried by a PID controlled hot air blower

Foil stackingCompleted foils are cut off the roll and stacked for offline assembly

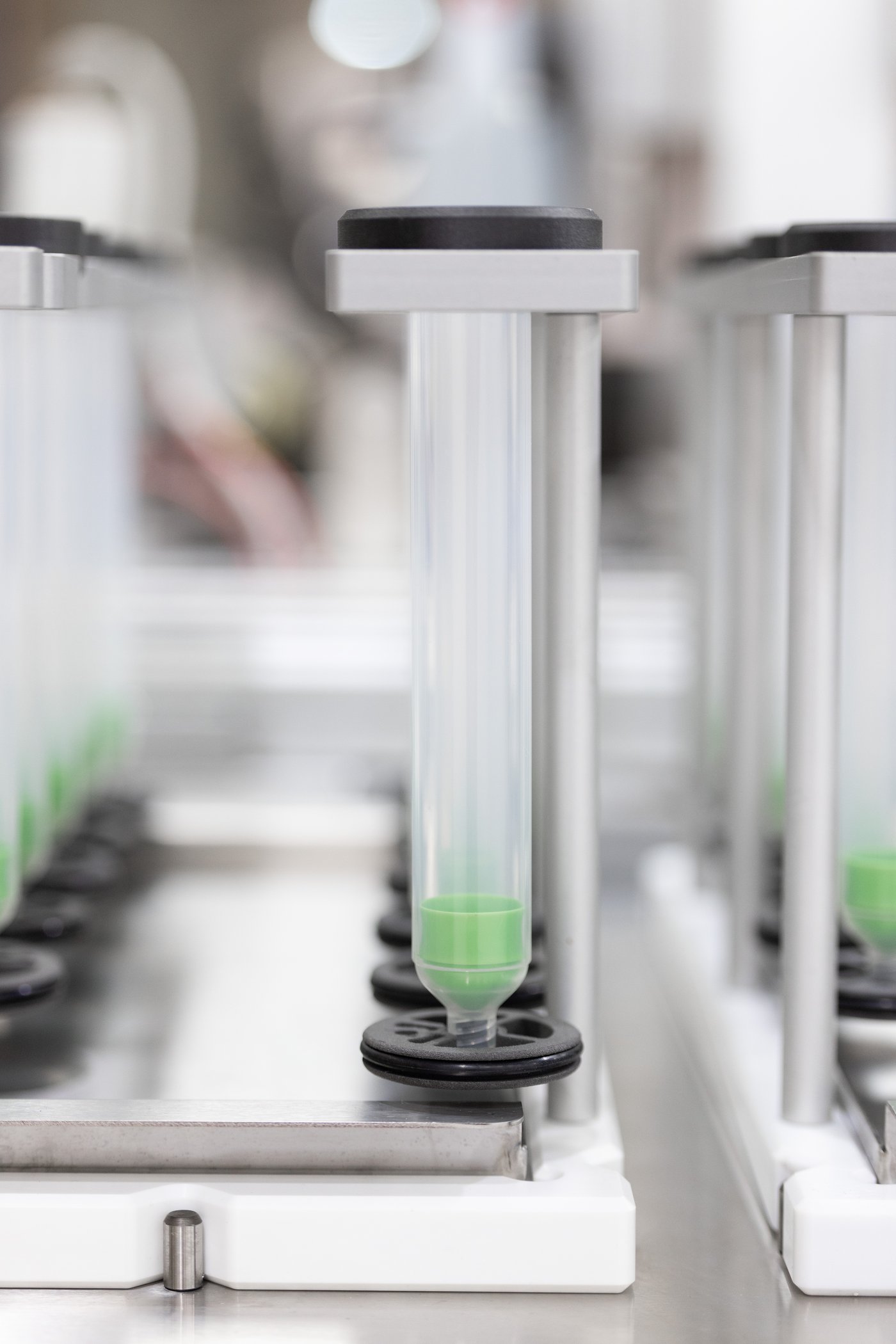

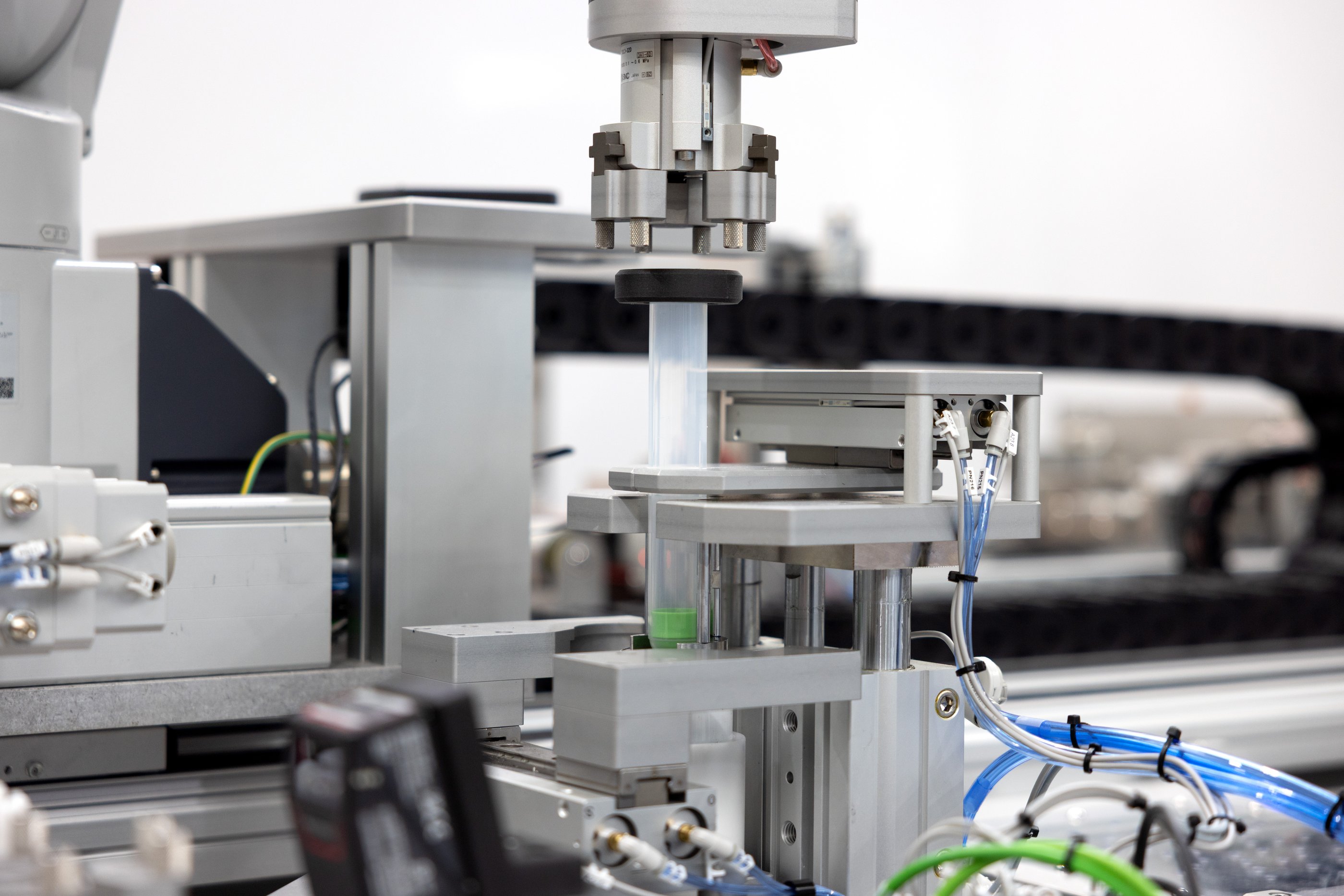

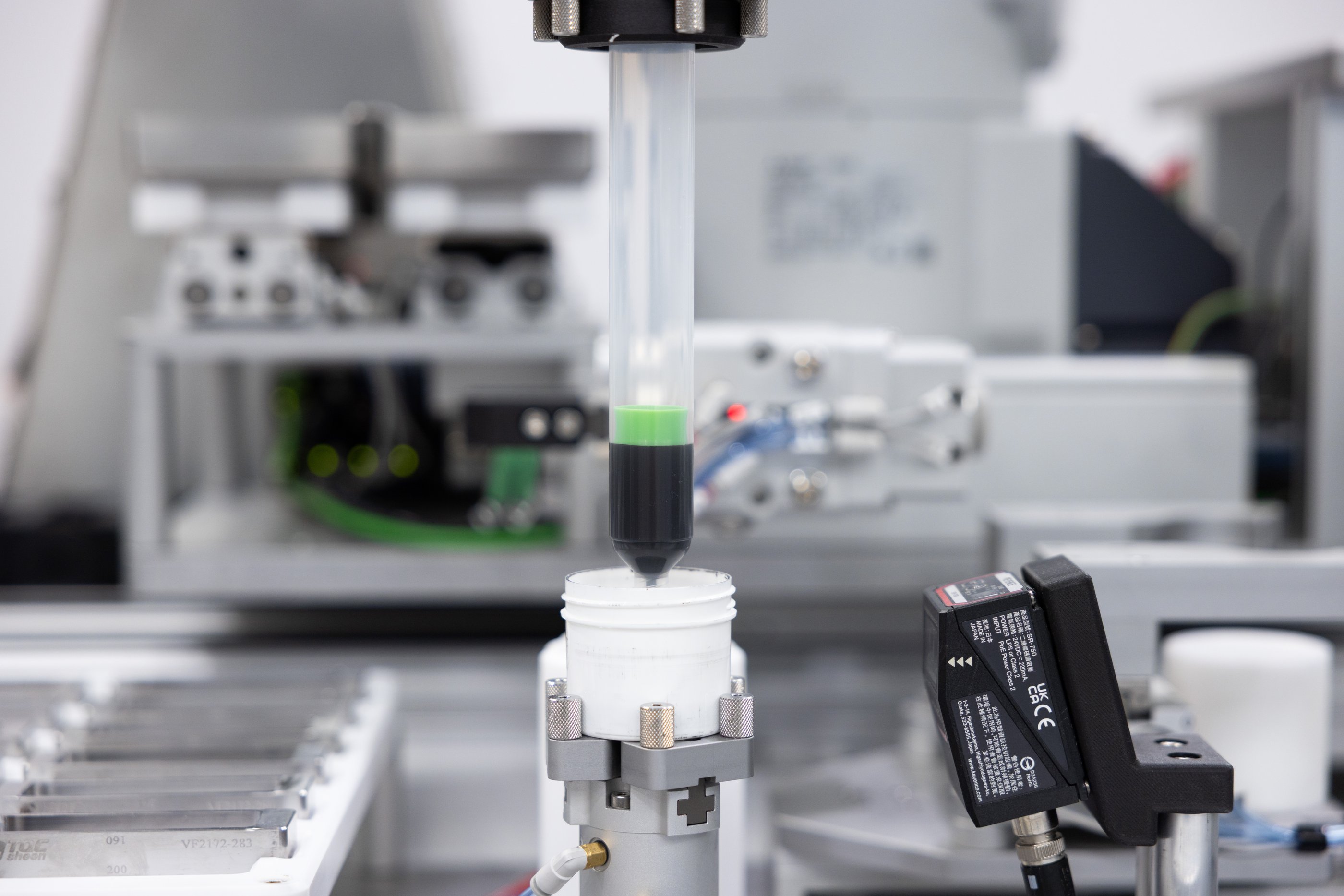

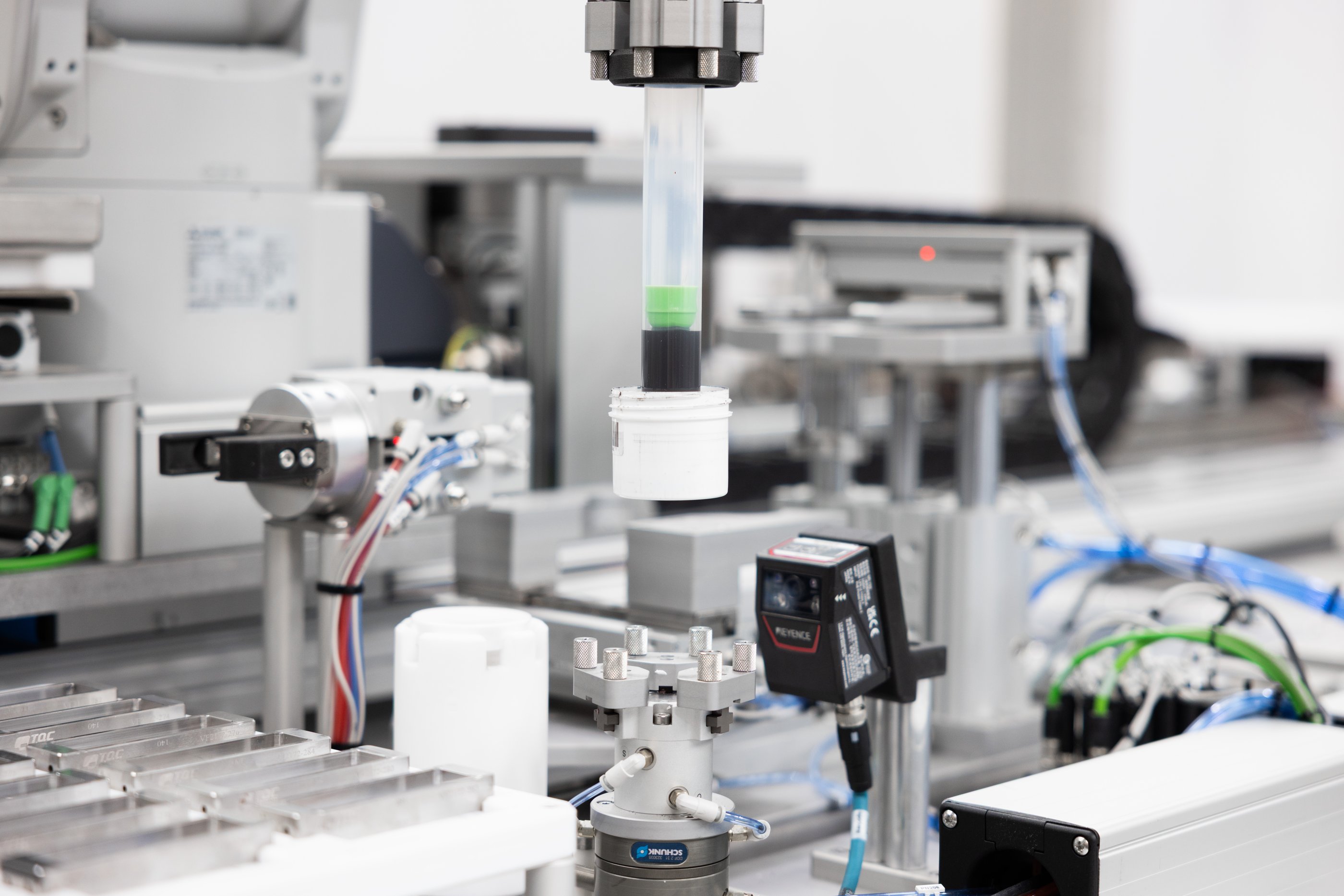

Syringe transferFormulation is transferred from pots into dispensing syringes with a custom designed injection moulded plunger

Ultrasonic washingDirty drawdown bars are cleaned with an ultrasonic washer

ImagingImages of dried coatings are captured for reference. Foils are labelled for traceability

GloveboxSystem is containted in a large glovebox which is used to create a Hepa filtered dry atmosphere

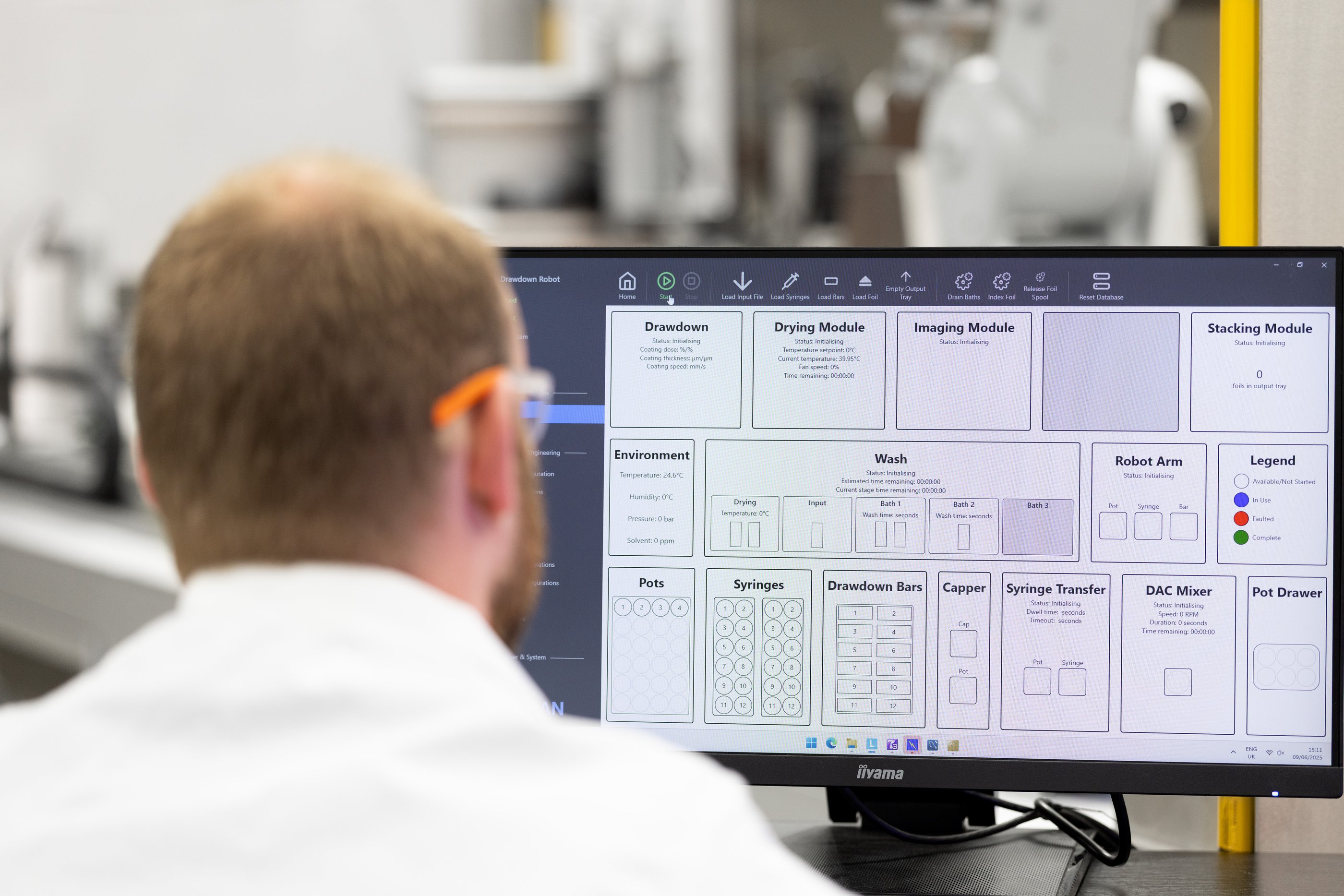

Overview

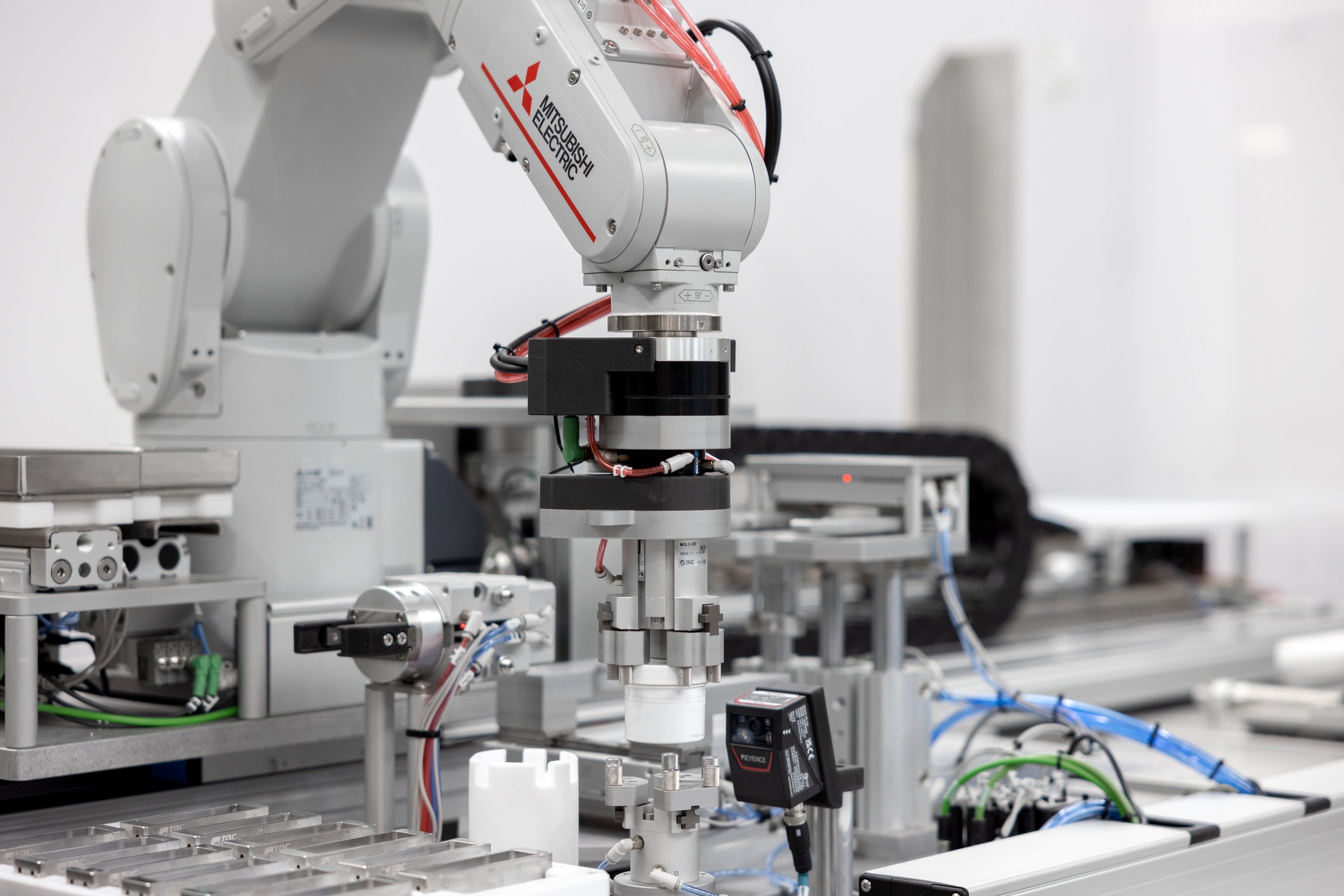

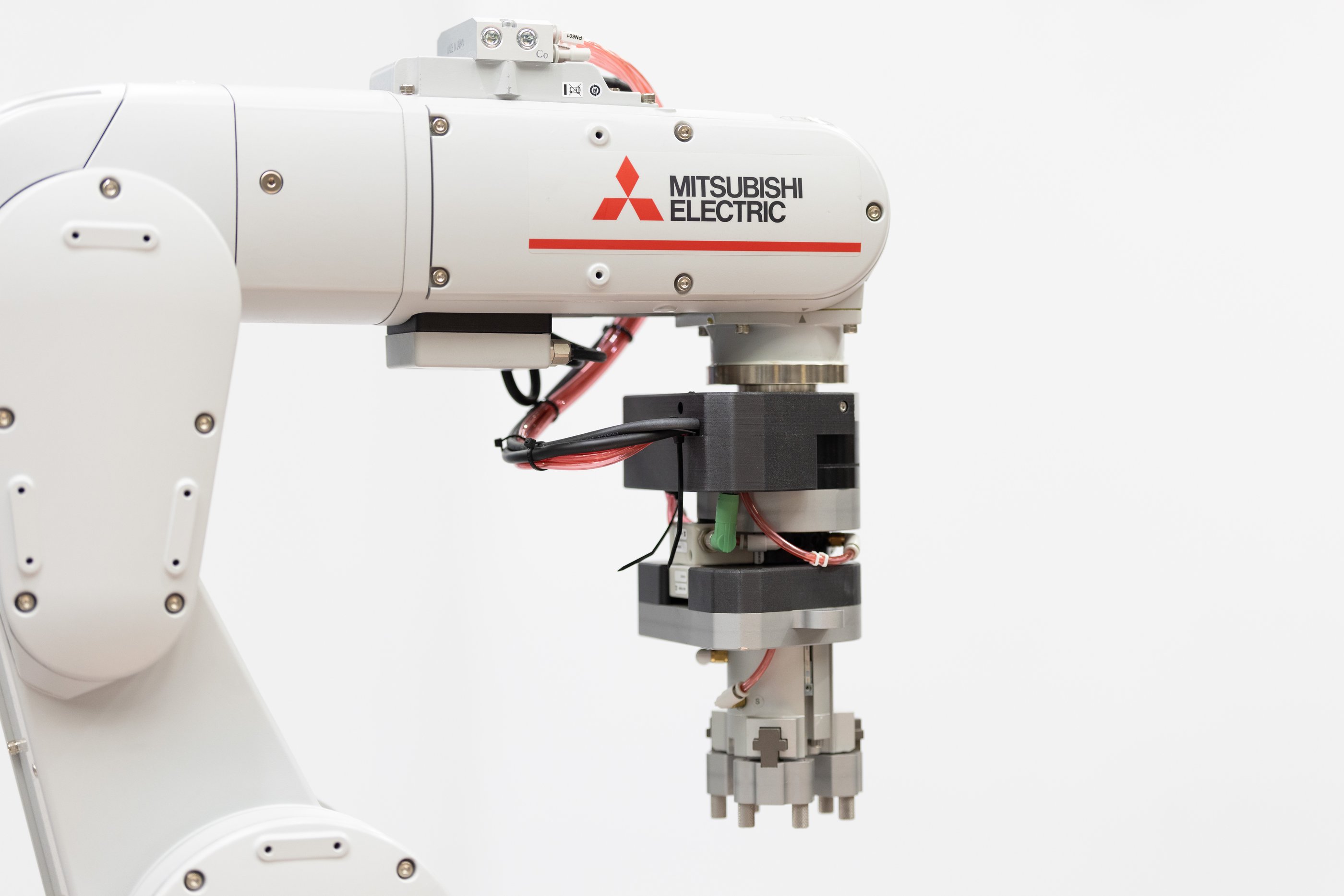

The system picks preloaded pots of battery slurry (or similar) formulations, mixes and dispenses them, and
uses drawdown bars to create thin film coatings on foil substrates. These foils are then oven dried and
output to a stack of interleaved, coated and dried foils. Once complete, these foils are manually removed
from the system and analysed offline. The target throughput for this system is 48 coatings in 15 hours.

The system has been designed so that it can be integrated with a mobile robot platform. This will be used to
deliver new pots to system which come directly from a previous Labman formulation system.

The entire top half of the system is contained inside a large glovebox. This is fitted with an air management
unit capable of drying the internal atmosphere down to -40°C dewpoint and uses activated charcoal to
capture solvents.
