Spectrophotometer and profilometer in high throughput measurement system

Integration of a spectrophotometer and LASER profilometer into a high throughput measurement system.
Labman custom system: Spectrophotometer and profilometer in high throughput measurement system

Key features

Large CapacityCapacity for 120 samples
High ThroughputThroughout of 16 samples per hour
Bespoke SoftwareBespoke image analysis software
LASER ProfilometerIntegration of LASER profilometer with 0.5um resolution
SpectrophotometerIntegration of spectrophotometer
Analysis SoftwareAnalysis software and export to Experiment database
Image StorageStorage of sample images for off line quality check
Spectrophotometer CalibrationAutomatic, periodic spectrophotometer calibration

Overview

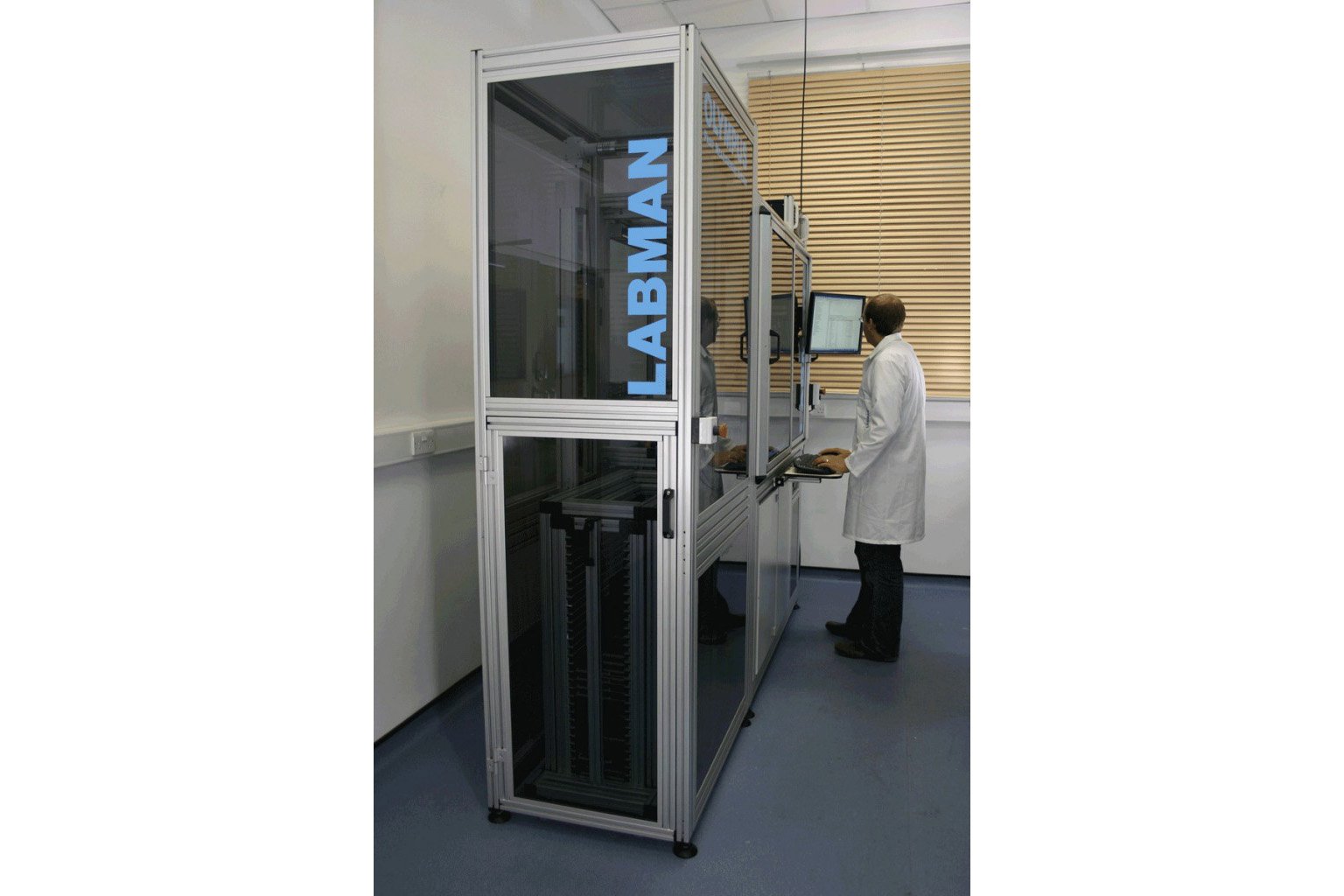

System Overview.

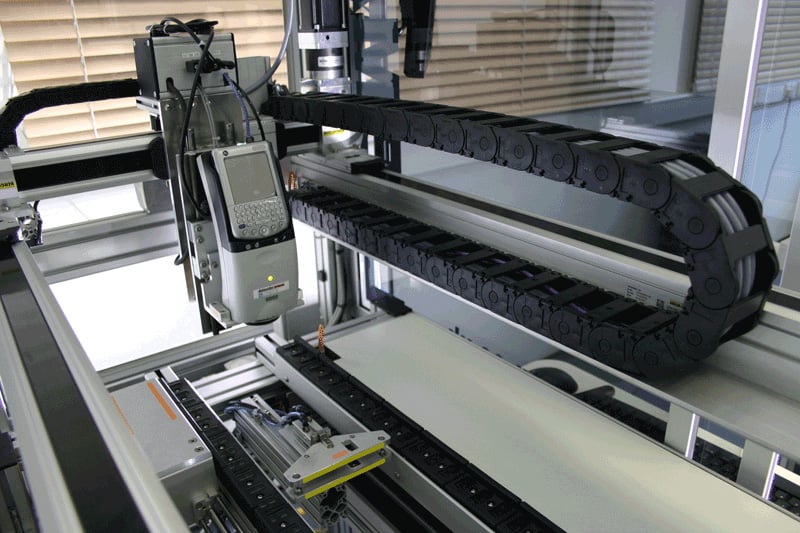

Labman integrated a spectrophotometer and LASER profilometer into a high throughput measurement system which was installed in the UK in 2008. The system measures the sample thickness using a LASER profilometer with resolution of 0.5um, which is moved over the surface using a raster scanning technique. After the sample thickness is measured the spectrophotometer is used to analyse the sample colour. Ideal measurement locations are identified using a digital camera with bespoke lighting and image analysis written by Labman. The system has capacity for 120 samples which are measured overnight and completed by the morning. After the process is complete the system’s software analyses all the data providing many forms of quantitative analysis of the sample.
