Custom project

Frit filtering and chilled block dispensing

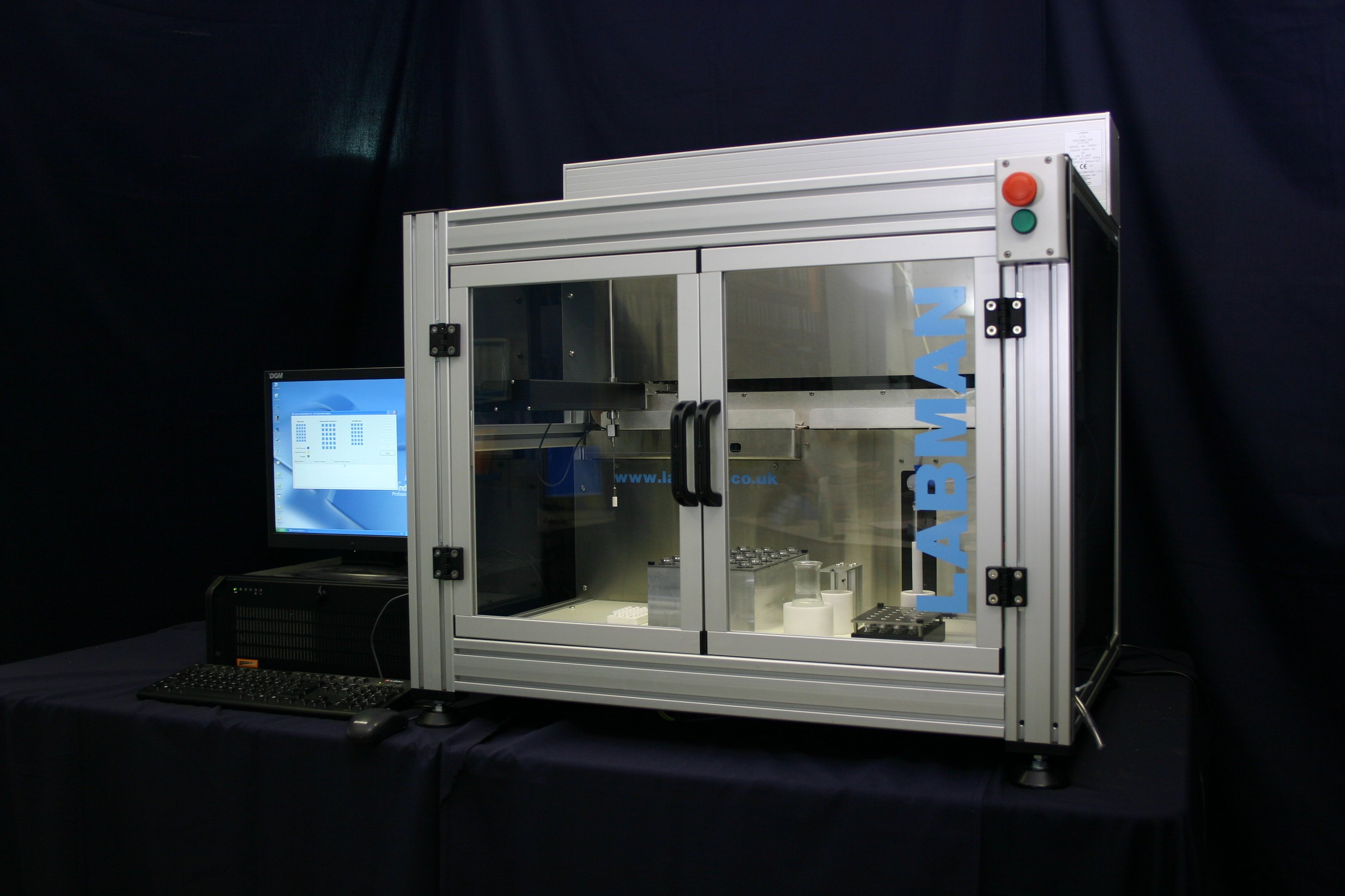

This system takes aliquots from a temperature controlled reaction block via a frit filter and injects them into septum sealed GC vials.
Labman custom system: Frit filtering and chilled block dispensing

Key features

High CapacityCapacity of 24 samples
Heating and ChillingHeating and chilling
24 Frit Capacity24 frit capacity
120s Cycle Time120s cycle time
Wash and Flush StationWash and flush station

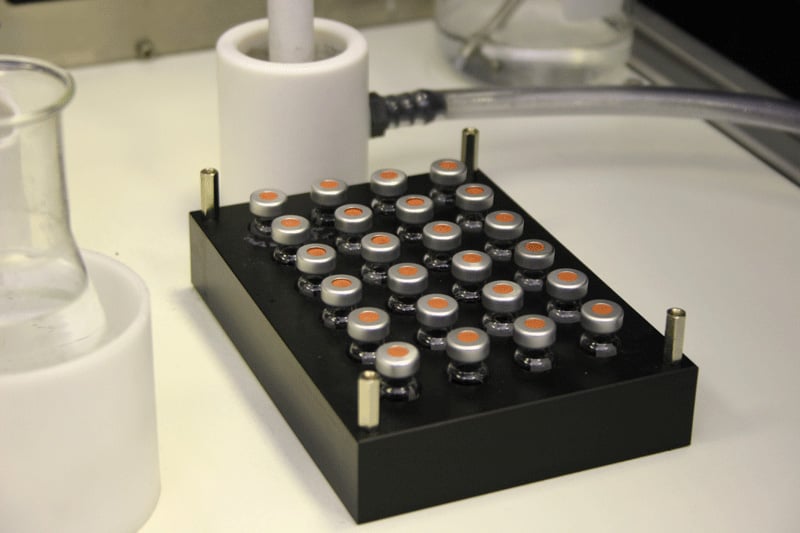

GC vialsSeptum sealed GC vials

Overview

System Overview.

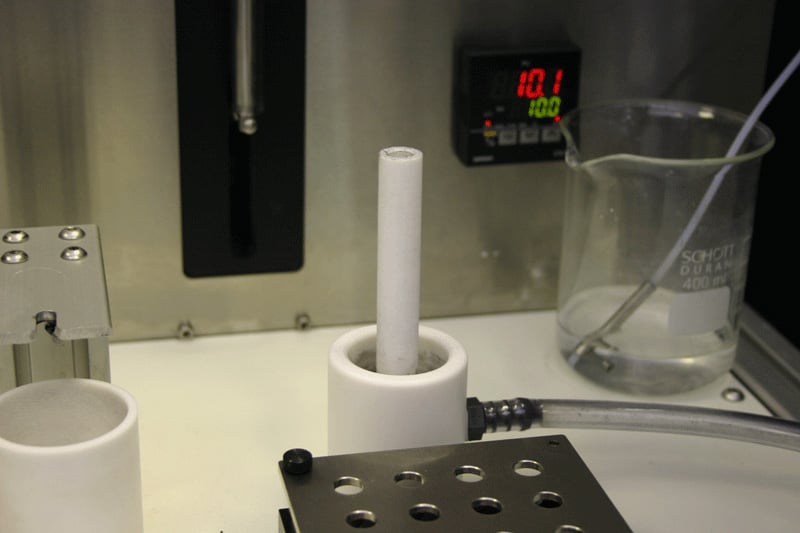

This system takes aliquots from a temperature controlled reaction block via a frit filter and injects them into septum sealed GC vials. The reaction block is peltier chilled and electrically heated allowing for a range of temperatures or computer controlled reaction temperature profiles. The sub-sample is aspirated with the Tecan robot and bespoke needle which loads automatically with a PTFE porous frit. The liquid handling needs to be slow and methodical to prevent the frit blocking and to get accurate liquid dispensing. The aliquots are injected into septum sealed GC vials with the non-coring needle. The materials are all PTFE and stainless steel to minimise corrosion.
